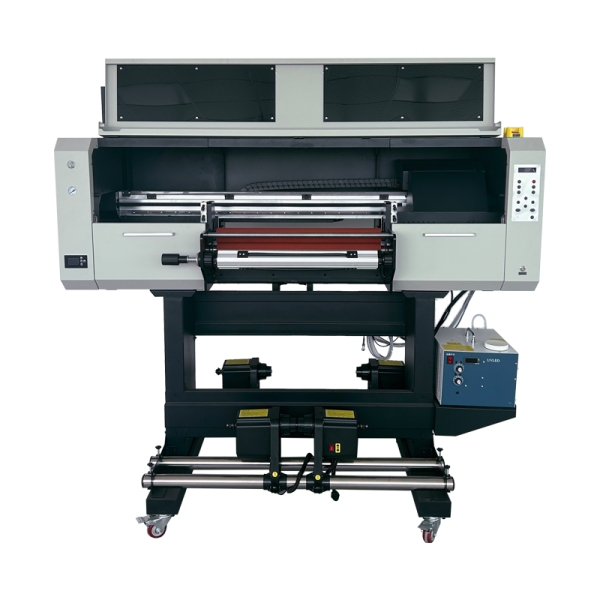

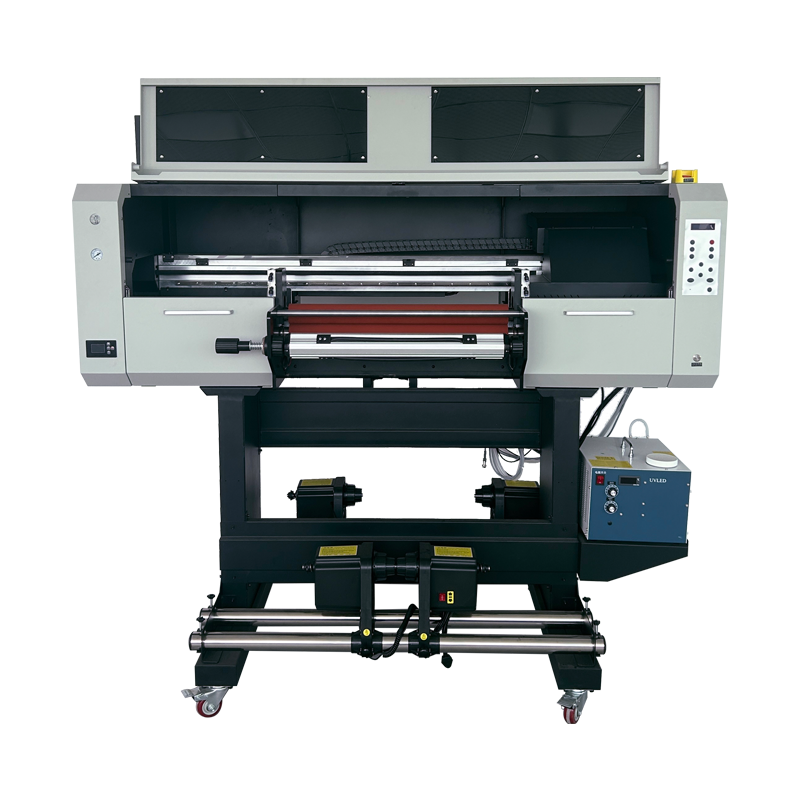

PrintVision 60cm A1 UV DTF Printer with Laminator

60cm Roll-to-Roll UV DTF Printer with Laminator

This 24-inch A1 UV DTF system combines printing and automatic lamination in one roll-to-roll workflow. It prints CMYK, white and varnish onto UV DTF AB film for transferable decals used on bottles, gift boxes, mugs, pens, acrylic and other compatible hard surfaces.

Key Features

• 0–600 mm printing width
• Integrated heated rubber-roller lamination
• Three or four Epson XP600, i1600-U1 or i3200-U1 printhead configurations
• CMYK + White + Varnish ink configuration
• Automatic white-ink stirring and circulation with low-ink alarm
• Anti-collision system and emergency-stop control
• UV-lamp curing with water cooling
• Gigabit Ethernet data transmission

Applications

Designed for UV DTF AB-film decals and flexible PP stickers for glass bottles, mugs, pens, gift boxes, acrylic products, packaging and personalized signage.

Specifications

Product Type	A1 roll-to-roll UV DTF printer with laminator
Model	QY-604LL (supplier-listed)
Print Width	0–600 mm / 24 inch
Printheads	XP600 / i1600-U1 / i3200-U1
Head Quantity	3–4 heads, configuration dependent
Ink	UV ink; CMYK + White + Varnish
Media	UV DTF AB film, flexible PP sticker, vinyl
Speed	8 m²/h at 6-pass or 6 m²/h at 8-pass with three i3200-U1 heads
Lamination	Heated rubber roller, automatic lamination
Curing / Cooling	UV lamp / water cooling
RIP Software	Maintop 6.1 / RIIN / Flexi
Interface	Gigabit Ethernet
Voltage / Power	110 V or 220 V / 1800 W
File Formats	PDF, JPEG, TIFF
Machine Size	1800 × 1000 × 1500 mm
Gross Weight	330 kg
Warranty	1 year; printheads and ink system excluded

Workflow

1. Prepare the artwork in the RIP software.
2. Print color, white and varnish layers onto UV DTF A film.
3. Cure the ink with the UV lamps.
4. Automatically laminate with B film.
5. Apply the finished decal to a clean compatible surface.

Configuration Check

Printhead count, production speed and software package vary by order. Contact PrintVision to confirm the required head configuration, voltage and media workflow before purchase.

FAQ

Does this printer include lamination?

Yes. The supplier specifies automatic heated rubber-roller lamination.

Can it print directly on objects?

No. This is a roll-to-roll UV DTF decal system using AB film; the finished transfer is applied to the object.
